TS-GSTN601消防电话分机
品       牌:
证       书:
价       格:
媒体价            ¥0.0元
价       格:
建议成交价
购买方式:
产品热度:
好评
度:
QQ:65890257
类似产品
 TS-GSTN604消防电话接口
 TS-GSTN602消防电话分机
 TS-GSTN603消防电话插孔

详情介绍

属性参数

图片(0)

视频(0)

文章资料

咨询评价

售后保障

年中大促

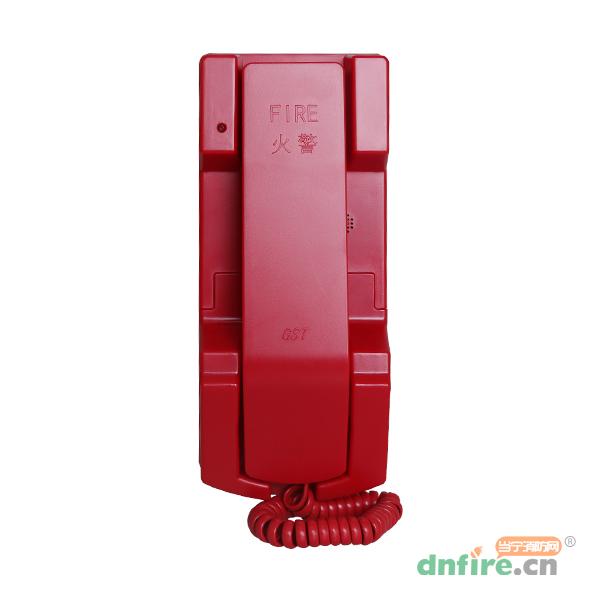

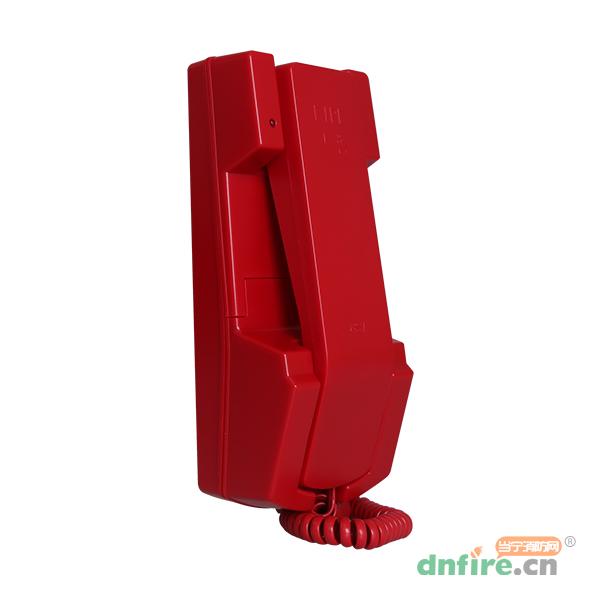

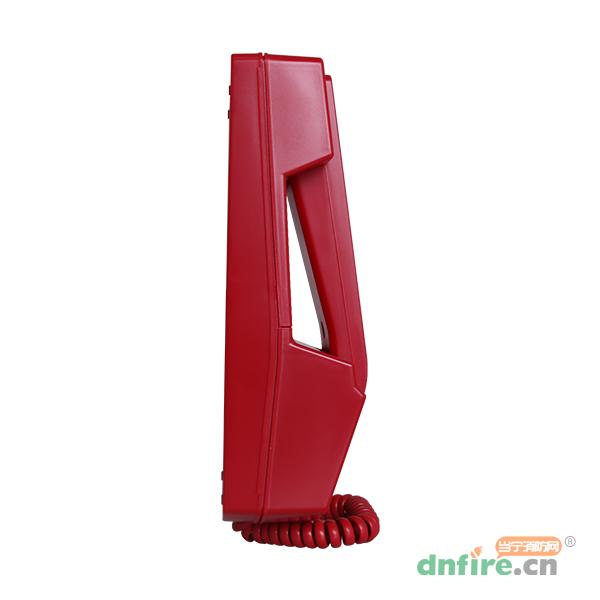

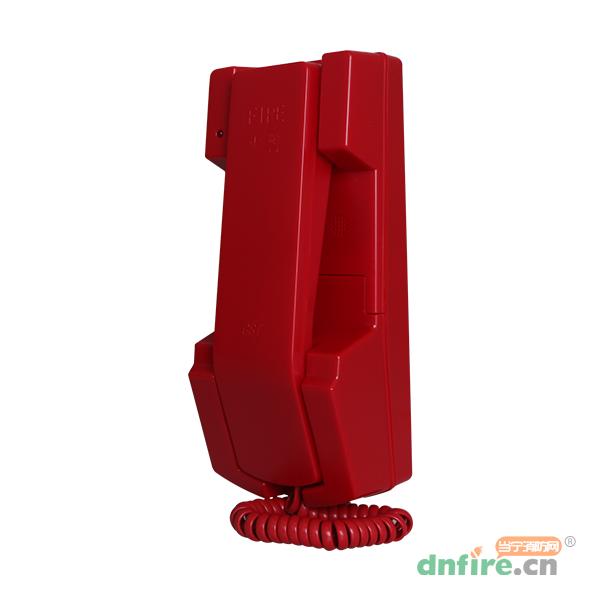

TS-GSTN601消防电话分机参数TS-GSTN601消防电话分机实拍图

一、TS-GSTN601消防电话分机特点

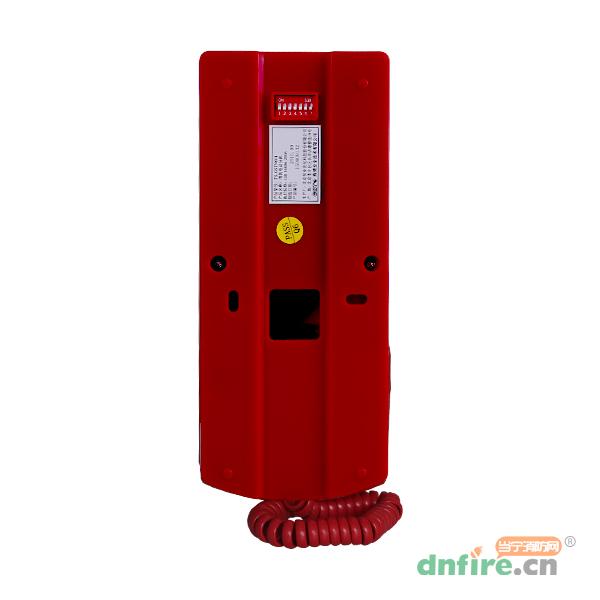

  TS‐GSTN601消防电话分机是固定式消防电话分机,分机须与TSZ‐GSTN60总线式消防电话总机配合使用。TS‐GSTN601消防电话分机在正常监视状态时,指示灯闪亮以指示工作正常,当发生紧急情况时,摘下电话手柄呼叫消防电话总机。分机拨码开关预置7位编码,有效编码范围1‐99。0及大于99的地址为无效地址。

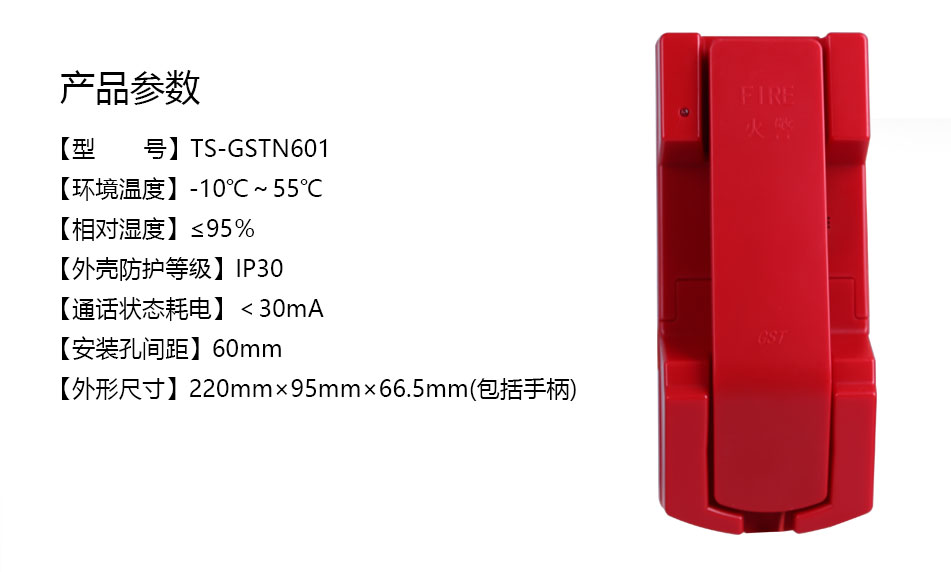

二、TS-GSTN601消防电话分机主要技术指标

型号 TS-GSTN601
环境温度 ‐10~55℃
相对湿度 ≤95%
外壳防护等级 IP30
TS‐GSTN601分机待机状态耗电 <1mA 通话状态耗电:<30mA

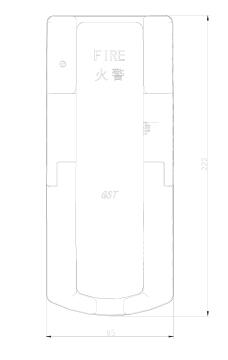

TS‐GSTN601分机尺寸 外形尺寸:220mm×95mm×66.5mm(包括手柄)
安装孔间距 60mm

TS-GSTN601消防电话分机

三、TS-GSTN601消防电话分机结构特征与安装

  S‐GSTN601消防电话分机是采用86预埋合固定孔安装方式。安装时,先将本机下部机盖打开,露出安装固定孔,然后利用螺钉将本机在86预埋合固定孔上紧固连接。接线完成后,再将下部机盖盖好,固定。

  本机背面的H+/H-端子连接有极性消防电话总线,导线应选用截面积大于1平方毫米的双色双绞线。

三、TS-GSTN601消防电话分机应用方法

  TS‐GSTN601消防电话分机同TSZ‐GSTN60电话总机之间通过两总线相连,两总线分正负极性。调试时与TSZ‐GSTN60消防电话总机配合试验。预置好分机编码、确定安装和接线正确无误后,接通电源。在总机上通过“设在线分机”功能操作,而将本分机登录到系统中。设置完成后,指示灯闪亮,表示分机处于正常待机状态,摘后可呼叫总机进行通话。
